Home - New Motorhomes - Fiat - Broadway EL
Look Inside

Fiat

Broadway EL

Look Inside Image Gallery Dealer Enquiry
Seats 2
Berths 2
Length 6630mm / 21'8''
Width 2320mm / 7'7"
Day Layout Night Layout Night Option Layout
Height 2865mm / 9' 5"
MTPLM (est) 3500kg
MIRO (est) 3146kg
User Payload (est) 354kg
Add to compare


Interior options

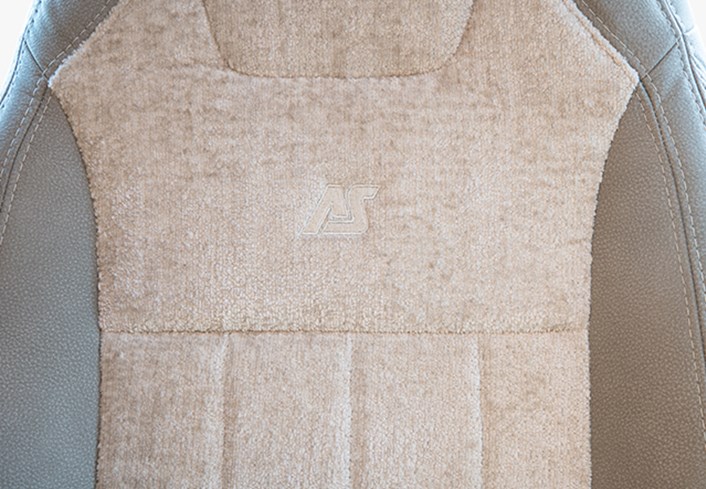

Como Oro Como Oro
Como Grigio Marrone Como Grigio Marrone

Vehicle information

Overview
Technical
Features
Bed Sizes
Pricing & Options
Overview

The latest Broadway EL is built on a long wheel base, wide track chassis measuring at 6.6m long and 2.77m wide. The EL features a compact yet incredibly spacious interior layout with a fully featured kitchen and a luxurious rear lounge; perfect for winding down after a day of exploring the great outdoors.

Technical
Fiat Engine Manual
140bhp
Designated Passenger Seats
2
Berths (Sleeping positions)
2
Overall Length
6630mm / 21'8''
Overall Width (mirrors folded)
2320mm / 7'7"
Overall Width (mirrors extended)
2690mm / 8'10"
Overall Height Standard Roof (excl TV aerial)
2865mm / 9' 5"
Internal Height (max)
1960mm / 6'5"
Maximum Permissable Laden Mass (a) (est)
3500kg
Mass in Running Order (b) (est)
3146kg
Maximum User Payload (c) (c=a-b) (est)
354kg
Essential Habitation Equipment (d)
10kg
Fresh Water Tank Size
102 litres
Waste Water Tank Size
78 litres

The MRO is is the mass of the unladen vehicle, including an allowance for the driver (assumed 75 kg) and a 90% full fuel tank. The MRO is calculated with the fresh water tank empty. If you travel with water in the freshwater tank then the User Payload will reduce accordingly.

The optional automatic gearbox on the Fiat chassis will increase the MRO by 50 kg and therefore reducing the user payload by the same amount. All masses and weights are subject to a tolerance of +/-5% complying with the European Directive 1230/2012. All motorhomes in this brochure conform to the European Standards for Motorhomes: EN1646 -1, EN 721, EN1949 and EN 1648-2. They have also been granted European Whole Vehicle Type Approval to EC Directive 2007/46. We would strongly advise against modifying vehicles in any way that could affect the validity of these Standards or Directives.

The Maximum User Payload includes:
Conventional load, is the allowance for passengers
Essential habitation equipment includes items and/or fluids required for safe and proper functioning of the habitation equipment.Optional equipment is items available from the manufacturer over and above the standard specification.
Personal effects, items not effected by the above.

When optional equipment is fitted to the Fiamma mounting rails on the rear of this motorhome, the combined maximum allowable load inclusive of the rack, is limited to a maximum of 50kg. The owner is responsible for ensuring this weight restriction is not exceeded, as it will invalidate your warranty if damage occurs from overloading.

Features

Base Vehicle
  • Fiat Turbo Diesel 140BHP Euro 6E manual engine
  • Optional Fiat Ducato 140bhp automatic engines#
  • Sargent CAT6 and S7 Vehicle Tracker Pre-Installed* (£100 Annual Subscription Applicable)
  • ESP, ABS brakes with EBA, EBFD as standard
  • Alloy wheels* plus spare wheel & carrier
  • Cruise control*
  • Cab air conditioning*
  • Integrated touch screen media console with DAB radio and Bluetooth® connectivity, adjustable screen positioning with Apple CarPlay & Android auto smartphone integration, Sat Nav & steering wheel controls*
  • USB and Auxiliary input sockets
  • Power assisted steering
  • Single key central locking for cab and habitation door
  • Driver and passenger airbags
  • Driver and passenger captain seats
  • Wing mirror aerials
  • Electrically adjustable door mirrors*
  • Daytime running lights
  • Electric cab windows
  • 12v socket
  • UV filtering tinted glass
  • Rear fog lights
  • Electric parking Brake*
  • Techno Dash kit - including leather Steering Wheel*
  • Heated Windscreen*

*Premium Pack  **Comfort Pack ***Tech Pack # Optional

Interior General
  • Luxurious furniture with chrome fixtures and fittings
  • Panoramic opening rooflight
  • Chrome grab handle
  • Privacy blinds & flyscreens to all opening windows
  • Choice of Designer ‘Como’ fabrics providing luxurious interior soft furnishings
  • High quality Reflex™ foam upholstery
  • Concertina cab blinds**
  • Colour co-ordinated habitation curtains with tiebacks and scatter cushions
  • Removable interior carpets**
  • LED spotlights and roof lighting
  • Over locker LED mood lighting
  • Seat tops on gas struts and drop down access door to the under seat storage space (model specific)
  • Avtex AMR985 Wifi Dual Sim Router and 5G compatible antenna system (SIM card required)***
  • Swivel cab seats on all front lounge models (where applicable)
  • Over-cab storage compartments
  • Spacious wardrobe
  • Range of high & low-level storage lockers
  • Cocktail cabinet with crystal wine glasses
  • Freestanding table
  • Foot-well entry step with AS logo light
  • Smoke and carbon monoxide alarms
  • Fire extinguisher
  • Freestanding and/or single leg table
  • Low level LED lighting in the elevated cab step fascia
  • Memory foam mattresses as standard on fixed beds (Broadway FB)
  • MPK Roof Lights with LED

*Premium Pack  **Comfort Pack ***Tech Pack # Optional

Exterior General
  • Space saving under-floor 25 litre LPG gas tank with LED level indicator
  • Colour co-ordinated front bumper and door handles
  • Metalarte exterior door with sliding flyscreen & central locking
  • Full scratch and impact resistant GRP body with platinum sides including GRP Rear Panel with Hella LED Lights
  • Opening wind-up sky-view window
  • Aluminium skirts
  • CRIS security chip
  • Large external skirt locker (space saving under-floor mounted) (except Broadway EL)
  • Drop down access door to nearside seating
  • Thule roof mounted canopy awning***
  • Colour reversing camera*
  • 100W solar panel***
  • LED strip awning light
  • Colour co-ordinated external TV socket
  • Colour co-ordinated external gas BBQ point**
  • Colour co-ordinated external 230v mains socket
  • Double-glazed opening windows with blinds & flyscreens
  • Electric slide-out entrance step with auto retract on engine start
  • Rear mud-flaps
  • Rear corner steadies

*Premium Pack  **Comfort Pack ***Tech Pack # Optional

Kitchen
  • Spacious and fully equipped with large slide out additional work surface
  • Dual fuel hob with 3 gas burners and an electric hot plate plus separate oven and grill
  • Dometic microwave oven**
  • Large refrigerator with freezer compartment
  • Decorative  kitchen splashback
  • Kitchen centre sink incorporating draining board and cutlery drying rack
  • 12v extractor fan with down-lighters
  • Cutlery drawer
  • Kitchen roll holder
  • Waste bin
  • Melamine crockery set

*Premium Pack  **Comfort Pack ***Tech Pack # Optional

Bathroom
  • Shower with bathroom window (Broadway EK & Nuevo)
  • Vanity cupboard
  • Separate shower cubicle
  • Chrome fixtures and fittings
  • Storage cupboard
  • Electric flush cassette toilet (model specific)
  • Black Anti slip shower mat
  • Ducted blown air outlet
  • LED lighting
  • Retractable clothesline (model specific)
  • Roof vent with flyscreen

*Premium Pack  **Comfort Pack ***Tech Pack # Optional

Electrics & Plumbing
  • Sargent EC700 electrical system with NEW EC900 LCD control panel
  • Split charged leisure battery
  • 230v socket(s)
  • 12v socket(s)
  • New Truma CombiNeo heating system with continuous hot water for reliable comfort and convenience
  • Truma Aventa Compact Plus air-conditioning#
  • Truma iNet Control Panel
  • 102 Litre fresh water tank
  • 78 Litre waste water tank
  • Gas Regulator
  • Large bore waste pipework for efficient drainage
  • Upgraded 100ah Lithium leisure Battery***
  • Flojet 12v Pump
  • Ultra Sonic Water Tank Sensors
  • Fresh & waste water tank heater blankets**
  • Wheel arch insulation blankets**

*Premium Pack  **Comfort Pack ***Tech Pack # Optional

Bed Sizes
Rear Double
2200 x 1870mm / 7'2'' x 6'1''
Nearside Single
1870 x 700mm / 6'1'' x 2'3.5''
Offside Single
1870 x 700mm / 6'1'' x 2'3.5''
Pricing & Options
Prices from £83,850 OTR
Upgrade Packs
Price
Fiat 140bhp Automatic engine

50kg less payload

£2,995
Fiat Coachbuilt Premium Pack (+116kg)
  • Alloy wheels
  • Colour Reversing camera
  • Concertina cab blinds
  • Techno Dash kit - including leather Steering Wheel
  • Electric Parking Brake (excl Nuevo EK Plus)
  • Heated Windscreen
  • Electric Mirrors
  • Cab air conditioning
  • Cruise control
  • Spare wheel kit
  • 10" Integrated Touchscreen Console - DAB with Apple CarPlay / Android Auto & Sat Nav
  • Sargent CAT 6 & S7 Vehicle Tracker (£100 Annual Subscription)
£3,975
Fiat Coachbuilt Comfort Pack
  • Microwave & Hood
  • Fresh Water & Waste Tank Blankets
  • External BBQ Point
  • Cab Blinds
  • Wheel Arch Insulation Blankets
  • Interior Carpet inc Cab
£1,825
Fiat Coachbuilt Tech Pack
  • Thule Canopy Awning
  • 100W Solar Panel
  • Wi-Fi
  • Upgraded 100ah Lithium Battery
£1,550
Truma Aventa Compact Plus Air Conditioning System (+33kg)
£2,000
Sargent AS Monitor Tracker Annual Subscription
£100
