Broadway EK TB LP

Overview

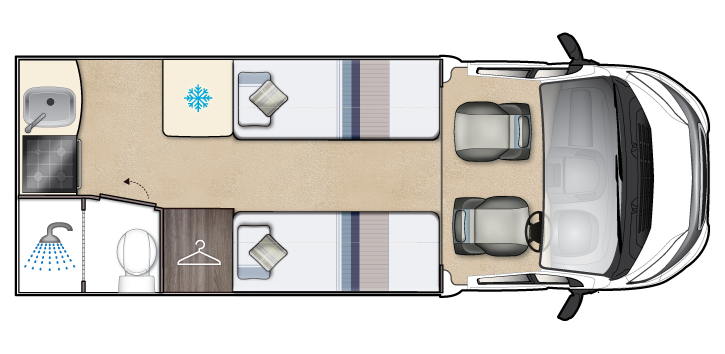

The EK TB LP builds on the popularity of the iconic Nuevo EK to deliver a spacious no compromise front lounge end kitchen model, which delivers on every front, with a huge lounge, which converts quickly at night to provide a choice between full-length singles or a pandering double bed.

Technical

Fiat Engine Manual

140bhp

Designated Passenger Seats

2-4

Berths (Sleeping positions)

2

Overall Length

6320mm / 20'9"

Overall Width (mirrors folded)

2320mm / 7'7"

Overall Width (mirrors extended)

2690mm / 8'10"

Overall Height Standard Roof (excl TV aerial)

2865mm / 9'5''

Internal Height (max)

2240mm / 7'4''

Maximum Permissable Laden Mass (a) (est)

3500kg

Mass in Running Order (b) (est)

3009kg

Maximum User Payload (c) (c=a-b) (est)

491kg

Essential Habitation Equipment (d)

17kg

Fresh Water Tank Size

102 litres

Waste Water Tank Size

71 litres

The MRO is is the mass of the unladen vehicle, including an allowance for the driver (assumed 75 kg) and a 90% full fuel tank. The MRO is calculated with the fresh water tank empty. If you travel with water in the freshwater tank then the User Payload will reduce accordingly.

The optional automatic gearbox on the Fiat chassis will increase the MRO by 50 kg and therefore reducing the user payload by the same amount. All masses and weights are subject to a tolerance of +/-5% complying with the European Directive 1230/2012. All motorhomes in this brochure conform to the European Standards for Motorhomes: EN1646 -1, EN 721, EN1949 and EN 1648-2. They have also been granted European Whole Vehicle Type Approval to EC Directive 2007/46. We would strongly advise against modifying vehicles in any way that could affect the validity of these Standards or Directives.

The Maximum User Payload includes:
Conventional load, is the allowance for passengers
Essential habitation equipment includes items and/or fluids required for safe and proper functioning of the habitation equipment.Optional equipment is items available from the manufacturer over and above the standard specification.
Personal effects, items not effected by the above.

When optional equipment is fitted to the Fiamma mounting rails on the rear of this motorhome, the combined maximum allowable load inclusive of the rack, is limited to a maximum of 50kg. The owner is responsible for ensuring this weight restriction is not exceeded, as it will invalidate your warranty if damage occurs from overloading.

Features

Base Vehicle

Fiat Turbo Diesel 140BHP Euro 6E manual engine
Optional Fiat Ducato 140bhp automatic engines#
Sargent CAT6 and S7 Vehicle Tracker Pre-Installed* (£100 Annual Subscription Applicable)
ESP, ABS brakes with EBA, EBFD as standard
Alloy wheels* plus spare wheel & carrier
Cruise control*
Cab air conditioning*
Integrated touch screen media console with DAB radio and Bluetooth® connectivity, adjustable screen positioning with Apple CarPlay & Android auto smartphone integration, Sat Nav & steering wheel controls*
USB and Auxiliary input sockets

Power assisted steering
Single key central locking for cab and habitation door
Driver and passenger airbags
Driver and passenger captain seats
Wing mirror aerials
Electrically adjustable door mirrors*
Daytime running lights
Electric cab windows
12v socket
UV filtering tinted glass
Rear fog lights
Electric parking Brake*
Techno Dash kit - including leather Steering Wheel*
Heated Windscreen*
